A brass cable gland may look like a simple machined component. However, producing a reliable gland requires several controlled manufacturing steps. The brass cable gland manufacturing process starts with the right raw material and continues through machining, threading, finishing, assembly, and inspection.

Each stage affects the final product. For example, poor raw material can affect machining and strength. Incorrect machining can affect dimensions. Poor threading can cause fitting problems. Similarly, inconsistent finishing can affect appearance and corrosion resistance.

Therefore, cable gland manufacturing is not simply about turning a piece of brass into a finished component. Instead, it is a controlled process in which material, dimensions, threads, finish, and assembly must work together.

For industrial buyers, understanding this process also makes it easier to evaluate a brass cable gland manufacturer in India.

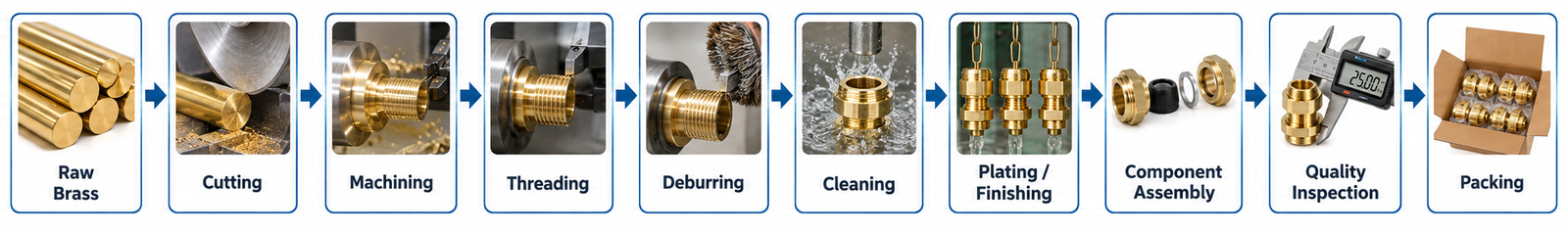

Brass Cable Gland Manufacturing Process: Step-by-Step

The manufacturing process can be broadly divided into these stages:

1. Brass Raw Material Selection

The first step is selecting the brass material. This stage matters because the material affects machining, strength, surface finish, and the overall performance of the finished component.

A manufacturer may use a specified brass grade according to the product design or customer requirements. Different projects can also require different material specifications. Therefore, buyers should not look only at the appearance of a finished gland. Instead, they should also understand what material specification the manufacturer is using.

Manufacturers widely use brass for cable glands because they can machine it into threaded components with grooves and other features. For customised orders, the material can also be selected according to the customer’s drawing, specification, or application requirement.

2. Brass Rod Cutting

Once the raw material is selected, the brass stock is prepared for machining.

Workers cut brass rods to suitable lengths before machining for many turned brass components. The cut length depends on the component design.

At this stage, consistency is important. Significant variations in the starting material length reduce machining efficiency and affect production consistency. Therefore, proper material preparation helps create a stable manufacturing process from the beginning.

3. Precision Machining

After cutting, the manufacturer machines the brass blanks into the required cable gland shape. The machining process can create several features, including:

• Outer diameter
• Internal bore
• Hexagonal sections
• Shoulders
• Grooves
• Sealing areas
• Cable entry sections
• Thread preparation areas

Turning machines can help manufacturers maintain repeatable dimensions during production. Volt also highlights its modern machinery, tool room, and quality-assurance team as part of its manufacturing infrastructure.

However, the machine alone does not guarantee accuracy. The manufacturer must also control tooling, machine settings, production parameters, and inspection. As a result, manufacturers should combine suitable machinery with proper process control.

4. Thread Manufacturing

Threading forms one of the most important stages in the brass cable gland manufacturing process. A cable gland must connect correctly with the equipment entry. Therefore, the manufacturer must produce the specified thread accurately. Depending on the project, buyers may require:

• Metric
• PG
• BSP
• BSPT
• NPT
• Other specified thread standards

The manufacturer should confirm the required thread before production. For example, an export customer may request NPT threads, while another project may require Metric or BSP threads. Therefore, the manufacturer should work from a clear drawing, specification, or approved sample whenever the application requires a specific thread.

5. Deburring and Edge Finishing

Machining can leave small burrs or sharp edges on a component. Therefore, the manufacturer removes those unwanted edges during the deburring stage. The production team checks areas such as:

• Thread edges
• Internal bore
• Machined shoulders
• Grooves
• Hexagonal sections
• Other machined edges

Proper deburring improves handling and helps the components fit together correctly during assembly. Furthermore, it gives the finished component a cleaner appearance. The manufacturer should choose the deburring method according to the product design and production process.

6. Cleaning the Machined Components

After machining and deburring, the manufacturer cleans the components. Machining can leave oil, chips, dust, and other residues on the brass surface. Therefore, the manufacturer should remove these residues before the next production stage.

Cleaning becomes particularly important when the manufacturer plans to apply a surface finish. A clean surface gives the finishing process a better starting point. As a result, the manufacturer can maintain more consistent surface quality.

7. Surface Finishing and Plating

Next, the manufacturer applies the required surface finish. Some buyers choose natural brass, while others request nickel-plated brass or another specified finish.

Nickel plating can provide a different appearance and additional surface protection. However, buyers should choose the finish according to their application, environmental conditions, and project specification. The manufacturer may provide options such as:

• Natural brass
• Nickel-plated brass
• Other customer-specified finishes

The manufacturer should also inspect the finished surface for appearance and consistency.

8. Manufacturing the Other Cable Gland Components

A cable gland often contains several components rather than one machined piece. Depending on the gland design, the assembly can include:

• Gland body
• Compression nut
• Locknut
• Seal
• Clamping components
• Armour components
• Earth tag
• Shroud

The exact components depend on the gland type. For example, a single compression gland and a double compression gland have different component arrangements. Therefore, the manufacturer must produce or source each component according to the approved product design.

9. Cable Gland Assembly

Once the individual components reach the required condition, the production team assembles them. The assembly process depends on the gland type. For example, the team may need to:

1. Position the sealing component.
2. Install internal components.
3. Fit compression components.
4. Check thread engagement.
5. Install the nut or locknuts.
6. Check the complete assembly.
7. Confirm the correct component combination.

The team should follow the approved product design during assembly. Furthermore, the manufacturer should check component fit before the product moves to final inspection. This becomes especially important for multi-component products such as double compression cable glands.

10. Quality Inspection

Quality inspection plays a major role in cable gland manufacturing. A gland can look correct while still carrying a dimensional or thread problem. Therefore, the manufacturer needs to inspect the product at suitable stages of production.

Important checks can include:

• Overall dimensions
• Thread dimensions
• Thread quality
• Cable entry dimensions
• Surface finish
• Component fit
• Seal position
• Assembly condition
• Visual appearance

Volt lists in-process and inter-process inspections, test equipment, quality planning, equipment calibration, and maintenance among its quality-control practices. Manufacturers can add further checks according to the product, customer specification, and applicable requirements.

11. Packing and Dispatch

After the manufacturer completes final inspection, the team packs the approved products. Good packaging helps protect cable glands during storage, handling, and transportation. For export orders, the manufacturer should also consider:

• Product quantity
• Box strength
• Labelling
• Customer packaging requirements
• Product identification
• Protection against surface damage

Volt highlights tamper-proof packaging as part of its quality-control system. Therefore, packing forms the final part of the manufacturing workflow.

How Manufacturing Affects Brass Cable Gland Quality

Every manufacturing stage can affect the final product.

Therefore, buyers should evaluate the complete manufacturing process, not just the finished gland.

What Should Buyers Check in a Brass Cable Gland Manufacturer?

When you compare manufacturers, price should not become your only deciding factor. Instead, ask the manufacturer about the following:

1. Manufacturing Capability – Can the manufacturer produce your required gland type, size, and thread?
2. Material Control – Can the manufacturer meet your specified brass material requirement?
3. Thread Capability – Can the manufacturer produce Metric, PG, BSP, NPT, or another required thread?
4. Quality Control – Does the manufacturer inspect dimensions, threads, finishes, and assemblies?
5. Custom Manufacturing – Can the manufacturer work from drawings or samples?
6. Production Capacity – Can the manufacturer handle your required quantity and production schedule?
7. Packaging – Can the manufacturer meet your domestic or export packaging requirements?
8. Technical Support – Can the manufacturer discuss specifications and help you finalise the correct product?

These questions become particularly important for OEMs, importers, distributors and large industrial buyers.

Why OEM Buyers Should Understand the Manufacturing Process

OEM buyers often need more than a standard catalog gland. For example, an OEM may need:

• Custom dimensions
• Specific threads
• Special finishes
• Specific brass grades
• Drawing-based production
• Sample matching
• Custom packaging
• Private labelling
• Large production quantities

Therefore, OEM buyers benefit from working directly with a manufacturer that can discuss production requirements. Volt states that it manufactures customised brass products according to customer drawings and samples. Its product range includes brass cable glands and accessories as well as other precision brass components. As a result, a buyer can discuss the technical requirement before production rather than simply choosing the closest catalog product.

Why Jamnagar Matters for Brass Component Manufacturing

Jamnagar has a long-standing brass component manufacturing ecosystem. Volt Metal Industries operates from Jamnagar, Gujarat, and its website highlights its manufacturing plant, machinery, tool room and quality-assurance team.

However, buyers should not choose a manufacturer based on location alone. Instead, they should evaluate:

• Manufacturing equipment
• Production capabilities
• Material control
• Machining quality
• Thread accuracy
• Inspection systems
• Customisation capability
• Packaging
• Export experience

This approach helps buyers compare manufacturers based on actual manufacturing capability.

Suggested FAQs

1. How does a manufacturer make brass cable glands? Manufacturers generally start with brass raw material and then cut, machine, thread, deburr, clean, finish, assemble and inspect the components.
2. What material do manufacturers use for brass cable glands? Manufacturers use specified brass grades according to the product design, application and customer requirements.
3. Which machines help manufacturers produce brass cable glands? Manufacturers can use CNC turning machines, automatic turning machines, threading equipment and other precision machining equipment according to the product and production volume.
4. How does a manufacturer make cable gland threads? The manufacturer machines the thread according to the required thread standard, dimensions and customer specification.
5. How does a manufacturer check brass cable gland quality? Manufacturers can check dimensions, threads, surface finish, component fit, assembly and visual condition. They can also perform additional checks according to the product specification.
6. Which finishes can manufacturers provide for brass cable glands? Manufacturers can provide natural brass, nickel-plated brass and other finishes according to their capabilities and customer requirements.
7. Why should OEM buyers work directly with a manufacturer? Direct communication allows OEM buyers to discuss drawings, samples, dimensions, threads, materials, finishes, quantities and packaging with the manufacturing team.
